PRESS Series
The PRESS is designed for high speed press handling. With its high precision and unmatched productivity, the PRESS has become the best productivity tool for press handling loading and palletizing.
Features
The PRESS pin optimizes the efficiency and productivity of the overall press shop, with different
combinations for different applications and
a solid foundation for every press command due to LIKEHEATTREATMENT thermal technology.
All PRESS series are equipped with LIKEPRECISION technology,
the ultra-precise RV Precision Gearbox,
which allows the robot to take full advantage of its advantages even at high operating speeds.
Sustainable Benefits
PRESS has low operating costs and low maintenance expenses, helping you to reduce costs significantly.
Highly Precise Operation
Combined with excellent controller computing, it can perform many precise handling, stamping, and palletizing tasks.
Extensive Product Portfolio
From 8 kg to 25 kg load, the complete range of stamping processes is guaranteed to meet the diverse needs of the widest range of product specifications.
Suitable For Wet and Harsh Environments
The PRESS series is dust and water-resistant to IP 65 for base axes and even IP 67 for wrist axes, making it ready for all-day use.

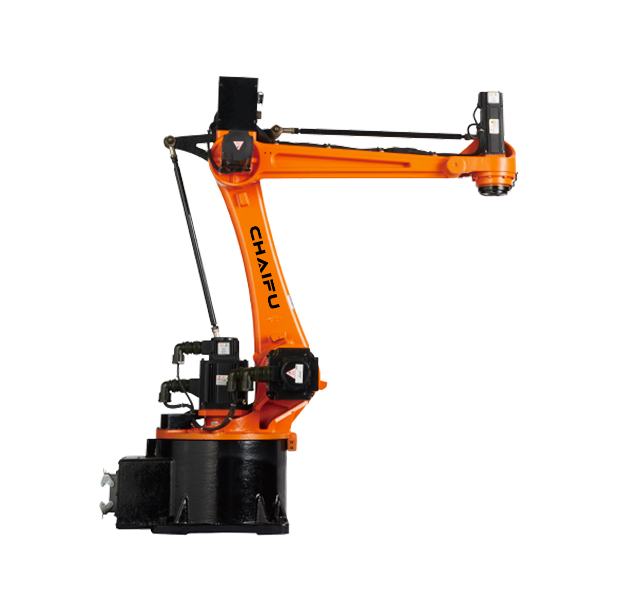

SF8-K1400 Specifications
Maximum Radius:
1492 mm
Payload:
8 kg
Repeatability:
± 0.07 mm
Protection Rating:
IP 65 (The wrist is protected to IP 67)
* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.
In addition, the machine on the picture may include additional equipment.

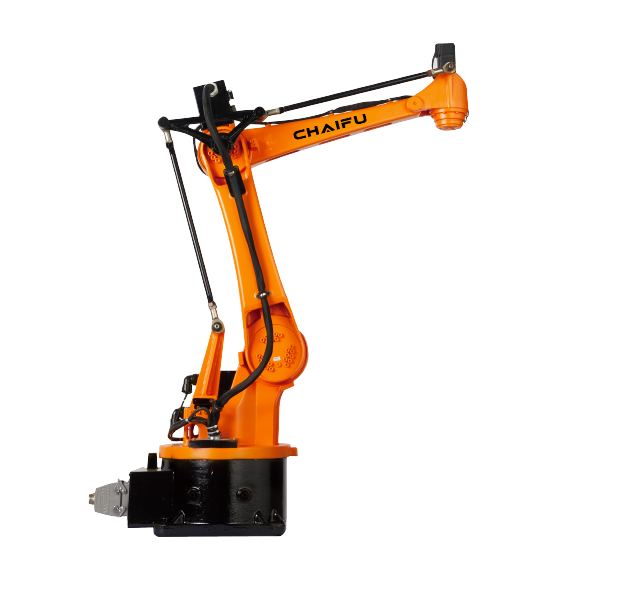

SF15-C1538 Specifications
Maximum Radius:
53 mm
Payload:
15 kg
Repeatability:
± 0.08 mm
Protection Rating:
IP 65 (The wrist is protected to IP 67)
* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.
In addition, the machine on the picture may include additional equipment.

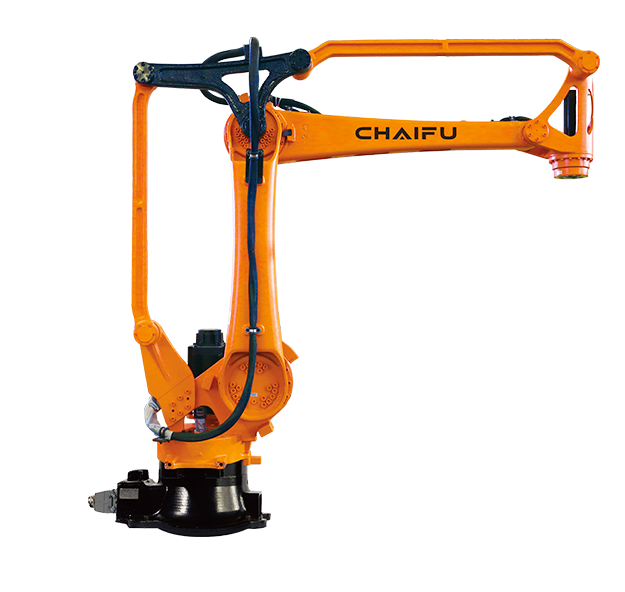

SF25-C1760 Specifications
Maximum Radius:
1760 mm
Payload:
25 kg
Repeatability:
± 0.08 mm
Protection Rating:
IP 65 (The wrist is protected to IP 67)
* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.
In addition, the machine on the picture may include additional equipment.

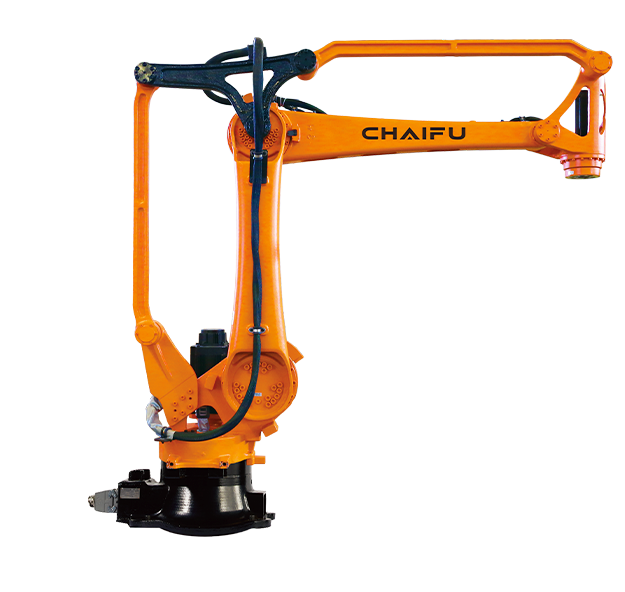

SF25-C1900 Specifications
Maximum Radius:
1900 mm
Payload:
25 kg
Repeatability:
± 0.08 mm
Protection Rating:
IP 65 (The wrist is protected to IP 67)
* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.
In addition, the machine on the picture may include additional equipment.
PRESS Data Overview
SF8-K1400 | SF15-C1538 | SF25-C1760 | SF25-C1900 | ||
|---|---|---|---|---|---|
Structure | Vertical Articulated | Vertical Articulated | Vertical Articulated | Vertical Articulated | |
Number of Axis | 4 | 4 | 4 | 4 | |
Radius | 1492mm | 1610mm | 1772mm | 1900mm | |
Payload | 8kg | 15kg | 25kg | 25kg | |
Repeatability | ±0.07mm | ±0.06mm | ±0.07mm | ±0.08mm | |
Drive Mode | AC Servo Motor | AC Servo Motor | AC Servo Motor | AC Servo Motor | |
Maximum Speed | J1 J2 J3 J4 J5 J6 | 150°/s 148°/s 195°/s 265°/s / / | 150°/s 150°/s 160°/s 300°/s / / | 130°/s 107°/s 135°/s 175°/s / / | 130°/s 107°/s 135°/s 175°/s / / |
Range of Motion | J1 J2 J3 J4 J2+J3 | ±160° +40°/-85° +35°/-70° ±360° / | ±165° +40°/-82° +78°/-75° ±360° -100°≤J2+J3≤+30° | ±175° +48°/-95° +80°/-75° ±360° -110°≤J2+J3≤+40° | ±175° +48°/-95° +50°/-75° ±360° -110°≤J2+J3≤+50° |
Allowable Moment | J4 J5 J6 | 28N·m / / | 196N·m / / | 882N·m / / | 882N·m / / |
Allowable Inertia | J4 J5 J6 | 0.52kg·m2 / / | 0.52kg·m2 / / | 0.62kg·m2 / / | 0.62kg·m2 / / |
Protection Rating | IP65, Wrist IP67 | IP65, Wrist IP67 | IP65, Wrist IP67 | IP65, Wrist IP67 | |
Operating Conditions | Temperature Humidity Vibration Other | 0-45℃ Below 95%RH Below 4.9m/s2 Eliminate Signal Noise | 0-45℃ Below 95%RH Below 4.9m/s2 Eliminate Signal Noise | 0-45℃ Below 95%RH Below 4.9m/s2 Eliminate Signal Noise | 0-45℃ Below 95%RH Below 4.9m/s2 Eliminate Signal Noise |
Base Size | 342*342mm | 384*384mm | 370*370mm | 370*370mm | |
Height | 1200mm | 1421mm | 1458mm | 1495mm | |
Weight | 132kg | 181kg | 260kg | 262.5kg | |
Mounting Positions | Any angle | Any angle | Any angle | Any angle | |
Power Consumption | 2kVA | 2.5kVA | 3kVA | 3kVA | |
Advantages
Mounting Position Flexibility
Ensuring reliability and saving space and costs per unit area of the work unit, the SF PRESS can be installed on floors, walls, and ceilings, or even at specific angles flexibly.
Time – Cost – Quality
The productivity of the PRESS is impressive and can be combined with the SF PRESS into a high-speed automated press line, generating huge benefits per unit of time.
Robust in a Wide Range of Working Environments
Continuous use over the entire temperature range of 0° to 45°C, 24-hour standby.
Unbeatable Price
PRESS has an unbeatable purchase price, low energy consumption, and low maintenance costs.
High Reliability and Durability
The rugged design of the PRESS ensures that it is ready to go at all times.
Cutting Edge Technology
By virtue of CHAIFU's three core components, the PRESS has the lowest purchase price among its peers.
